Condensing unit (also called compressor unit) is the most important refrigeration system part of whole cold storage room. A condensing unit typically is a high side assembly of a refrigeration system. It is an assembly of compressor, air cooled condenser, axail fan motor, controls and other accessories. It has the function of a heat exchanger to cool or freeze down and condense the incoming refrigerant vapor into liquid and a fan for blowing outside air through the heat exchanger section to cool the refrigerant inside. Condensing units have various designs and come in many sizes ranging from small household appliance units to very large industrial units used in food and manufacturing processes.
In order to supply the large cooling capacity for project, and adjust cooling capacity according to the cooling need by percent, so we design the parallel condensing unit, suitable Simens PLC controller, it can control automatic, power saving.

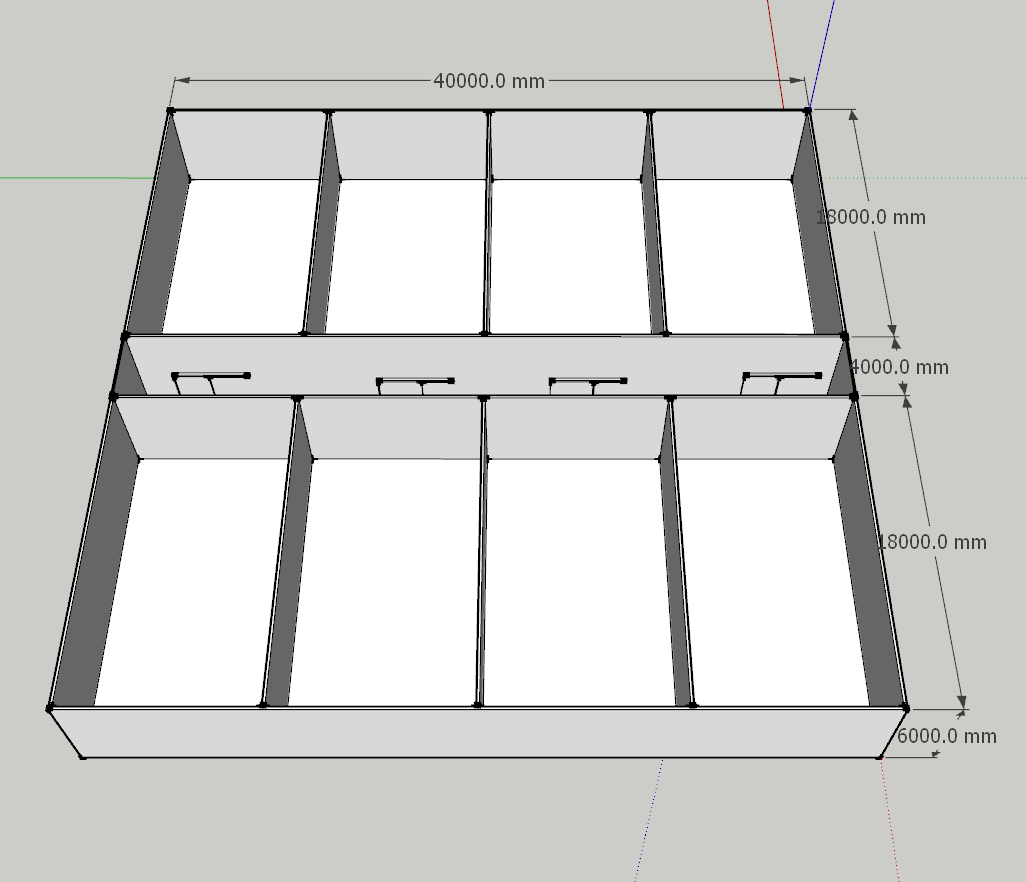

This project is for beef freezer room,
| Room size | Each room 18x10x6m, total 8 rooms |
| Room temperature | -25℃ |
| Room panel | 150mm PU panel for cold room |
| Floor | Insulated floor |
| Food | Frozen chicken |
